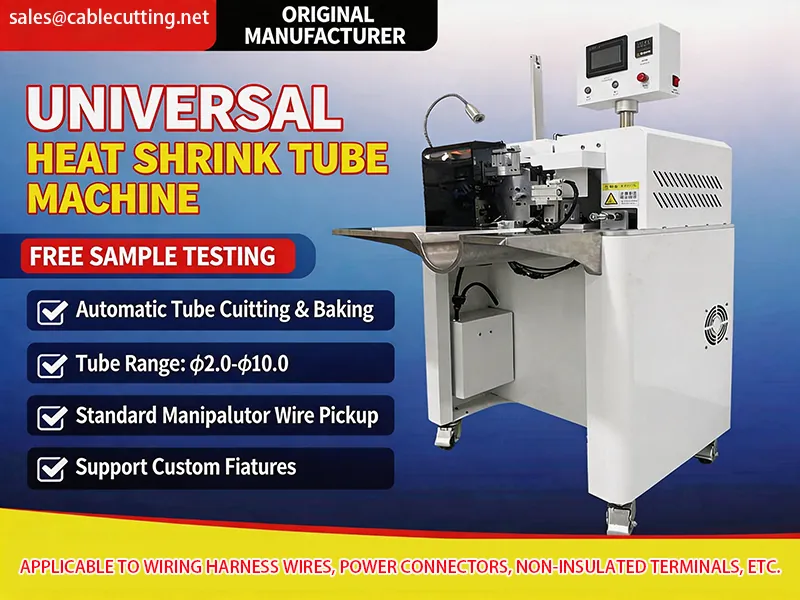

Universal Heat Shrink Tubing Baking Machine JW-100ST-01

Universal Heat Shrink Tubing Baking Machine JW-100ST-01
1. Industrial automation PLC and HMI control, simple operation, stable performance and high efficiency.
2. Automatic feeding of heat shrink tubing, baking length can be set freely, and welding position can be adjusted by positioning device.
3. Capacity: 700-2500 terminals/hour (depending on manual loading speed).
4. High compatibility, can process various specifications of wires by replacing jigs.

Item	Parameter
Model	JW-100ST-01
Input Voltage	220V-AC
Frequency	50/60HZ
Rated Power	1350W
Display	4.3 inch Color TFT
Operation Cycle	2.2 seconds
Operation Mode	Passive
Control System	PLC/Touch Screen
Tubing Compatibility	φ1.0-φ6.5 (customizable above φ7.0)
Baking Length	4MM-50MM (with optional jig)
Baking Temperature	200℃-380℃ (adjustable)
Air Pressure	5.5/6.5KPa
Operating Temperature	0℃-50℃
Storage Temperature	-20℃-60℃
Operating Humidity	10%RH~90%RH (non-condensing)
Cooling Method	Forced Air Cooling
Dimensions	L500×W640×H1300mm
Weight	78KG

Product Features
1. All series are equipped with automatic manipulator for wire picking (for standard wires only).
2. Digital temperature control with heating device abnormality monitoring. Automatic protection when air pressure is too low to extend service life.
3. Prevent parameter setting errors, system one-key recovery function.
