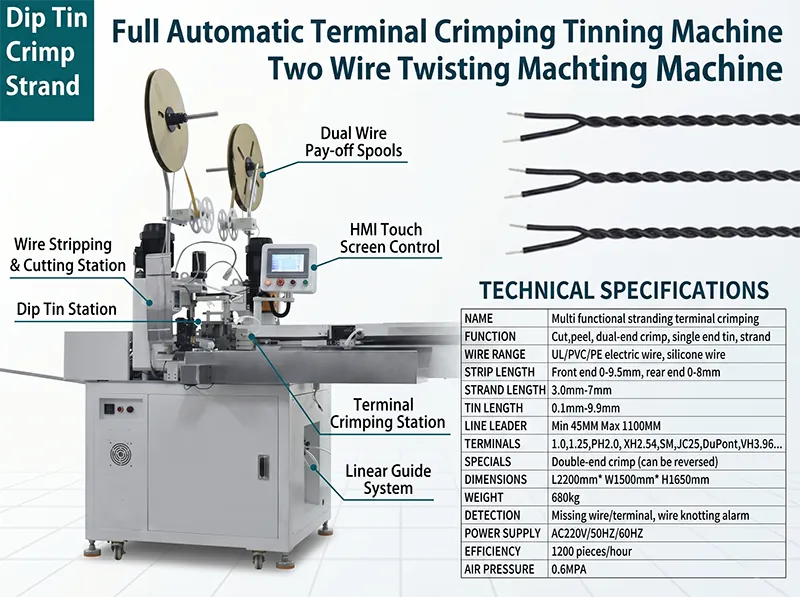

Full Automatic Terminal Crimping Tinning Machine Two Wire Twisting Machine JW-WTT

Full Automatic Terminal Crimping Tinning Machine Two Wire Twisting Machine

Introduction
The Full Automatic Terminal Crimping Tinning Machine Two Wire Twisting Machine is a professional industrial equipment designed for automatic, high-precision and high-efficiency processing of electrical wires. It integrates two-wire twisting, terminal crimping and tinning functions into one integrated automated system, which can completely replace manual operation, greatly improve production efficiency, reduce labor costs, and ensure the consistency and stability of product quality. This machine is widely used in various fields that require wire processing, and is an essential core equipment for wire harness production enterprises.

Key Features & Benefits

1. Integrated Three-in-One Function: It integrates two-wire twisting, terminal crimping and tinning into one, realizing one-stop automatic processing from wire twisting to terminal forming and tinning, which simplifies the production process and avoids the quality problems caused by manual transfer between processes.

2. Full Automatic Operation: Equipped with advanced PLC control system and touch screen operation interface, it can realize automatic wire feeding, cutting, peeling, two-wire twisting, terminal crimping, tinning and blanking. The whole process does not require manual intervention, which effectively reduces labor intensity and human errors.

3. High Precision & Stability: Adopting high-precision servo motor and ball screw drive, the wire feeding, twisting, crimping and tinning positions are accurately controlled, the twisting pitch is uniform, the crimping force is stable, and the tinning thickness is consistent, ensuring the qualified rate of products.

4. Strong Versatility: It can be adjusted according to different wire specifications (such as wire diameter, length) and terminal types, supporting various common terminals and wires, and can meet the processing needs of different industries and products.

5. Durable & Easy Maintenance: The key components are made of high-quality metal materials, which have good wear resistance and corrosion resistance, and have a long service life. The machine structure is reasonable, the disassembly and assembly are convenient, and the daily maintenance and fault handling are simple.

6. Intelligent Protection: It is equipped with multiple safety protection devices, such as overload protection, emergency stop button, and wire breakage alarm, which can effectively protect the safety of operators and the machine itself, and reduce production downtime.

Technical Specifications

Parameter	Specification
Core Function	Two-wire twisting, terminal crimping, wire tinning, wire cutting, insulation peeling
Applicable Wires	UL/PVC/PE electric wire, silicone wire, multi-strand copper wire
Wire Diameter Range	0.5-2.5 mm²
Twisting Pitch	3-10 mm (adjustable)
Tinning Length	0.5-10 mm (adjustable)
Wire Length Range	50-1500 mm (adjustable)
Production Efficiency	800-1200 pieces/hour
Power Supply	AC220V / 50Hz/60Hz, 1.5KW
Air Pressure Requirement	0.5-0.7 MPa
Machine Dimensions	L2200 × W1500 × H1650 mm
Net Weight	680 kg

Applications

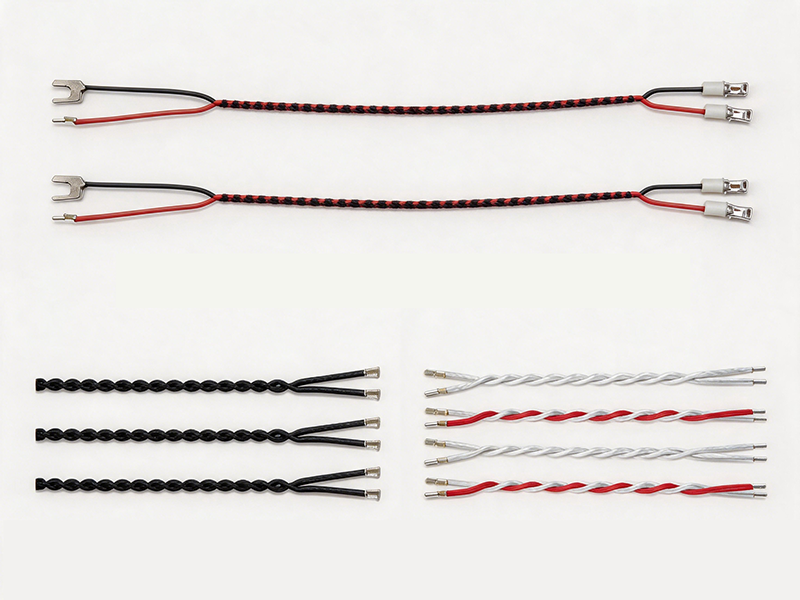

This Full Automatic Terminal Crimping Tinning Machine Two Wire Twisting Machine is widely used in the production of wire harnesses for automotive, household appliances, electronic equipment, communication equipment, medical equipment, industrial control equipment and other industries. It is suitable for processing various wires that need twisting, crimping and tinning, and can meet the high-standard processing requirements of different enterprises.
