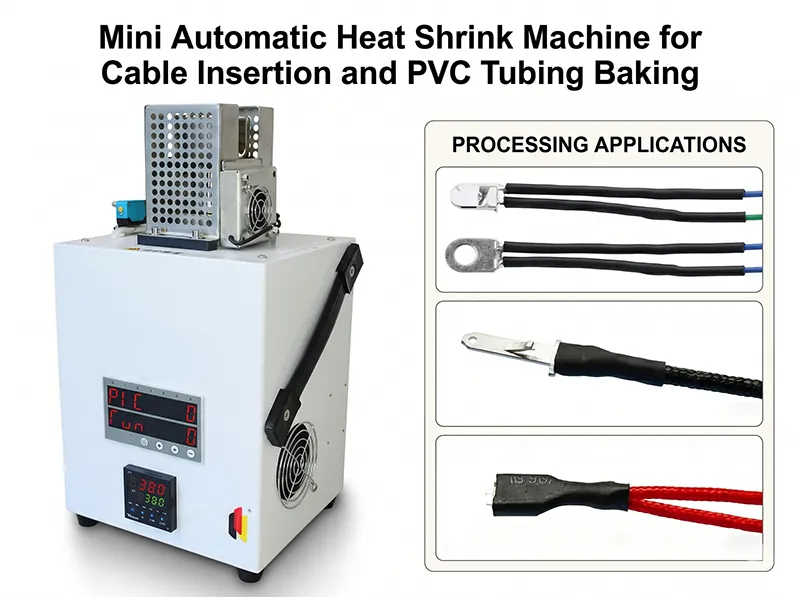

Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B

Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B

Product Overview

The JW‑HST‑05B is a compact, high‑efficiency automatic heat shrink machine designed for cable insertion, pressing, forming, and PVC tubing baking. Ideal for wire harness processing, electronic assembly, and small‑batch manufacturing, it delivers stable, consistent shrink results with minimal operator training.

Key Features

Compact & lightweight: 400×200×200 mm, approx. 6 kg, easy to move and install

Intelligent temperature control: precise and stable heating for uniform shrinkage

High yield: up to 99% yield rate with proper training

Efficient production: 600–1200 pcs/h (depends on length and diameter)

Safe and durable: equipped with sensing switches and reliable control system

Multi‑patent design: protected by invention, utility model, and design patents

Wide compatibility: supports PVC and other heat‑shrink tubing

Technical Specifications

Item	Parameter
Model	JW‑HST‑05B
Power Supply	AC 220V 50/60Hz
Baking Length	5 mm–120 mm
Baking Pipe Diameter	2.0 mm–45 mm
Efficiency	600–1200 pcs/h
Yield Rate	99%
Power	1.6 / 2 / 3 kW
Product Size	400×200×200 mm
Weight	Approx. 6 kg

Applications

Wire harness and cable assembly

Electronic component insulation

PVC tubing heat shrinking

Small parts packaging and protection

Manual insertion and semi‑automatic production lines
